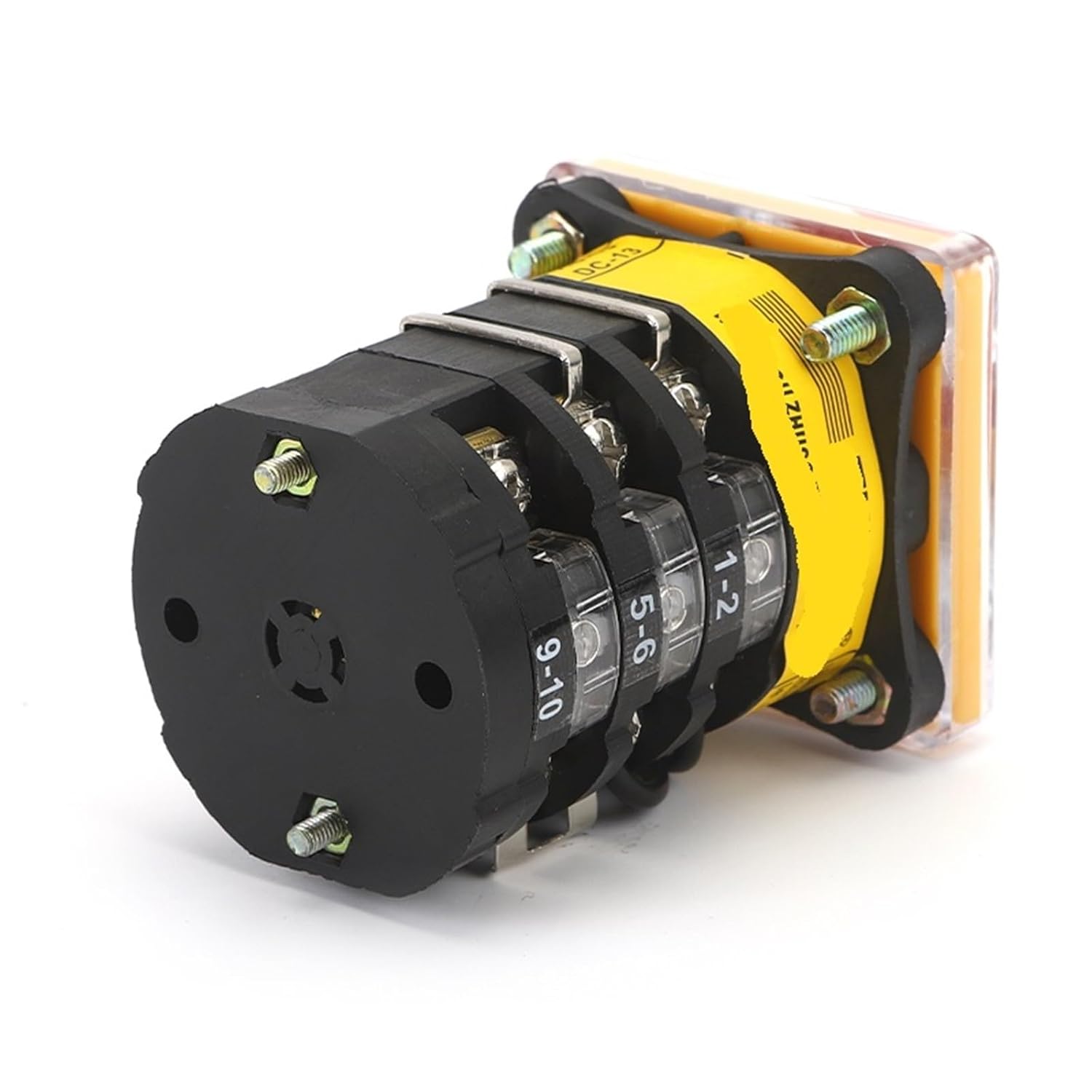

SZW25-48D/3 25A REV Stop for 3 Position Three Pole 12 Screw Yellow Panel Rotary Cam Switch 1Pcs
Product details
| Management number | 211073644 | Release Date | 2026/04/04 | List Price | $20.78 | Model Number | 211073644 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Knife Switches1.Product Name:SZW25-48D/3 25A 3 Phase Universal Rotary Changeover Cam Switch2.Specification:Lacthing Selector ; Ui: 500V, Ith: 25A ; 3 Phase 12 Terminals3 Position (REV-STOP-FOR)3.Rating :AC-15: Ue AC380V Ie 12ADC-13: Ue DC220V Ie 0.27A4.Panel size:48 x 48 mmInstall Size:36 x 36 mm Current : 25AMaterial : PlasticSwitch Type : Universal SwitchModel Number : SZW25-48D/3Features : 3 PhaseItem Type : SWITCHES Rated insulation voltage(Ui) : 500VConventional heating current(Ith) : 25AUse category 1 : AC-15Rated working voltage(Ue) 1 : AC380VRated working current(Ie) 1 : 12AUse category 2 : DC-13Rated working voltage(Ue) 2 : DC220VRated working current(Ie) 2 : 0.27A
- Knife Switches
| Color | SZW25-48D 3 |
|---|---|
| Terminal | Blade |
| Brand Name | AXAUCHOZ |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | AXAUCHOZ |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
