STC-3008 Dual LED Digital Temperature Controller Incubator Thermostat Heater Cooler Control Two Relay Output Thermoregulator(STC-3008 DC24V)

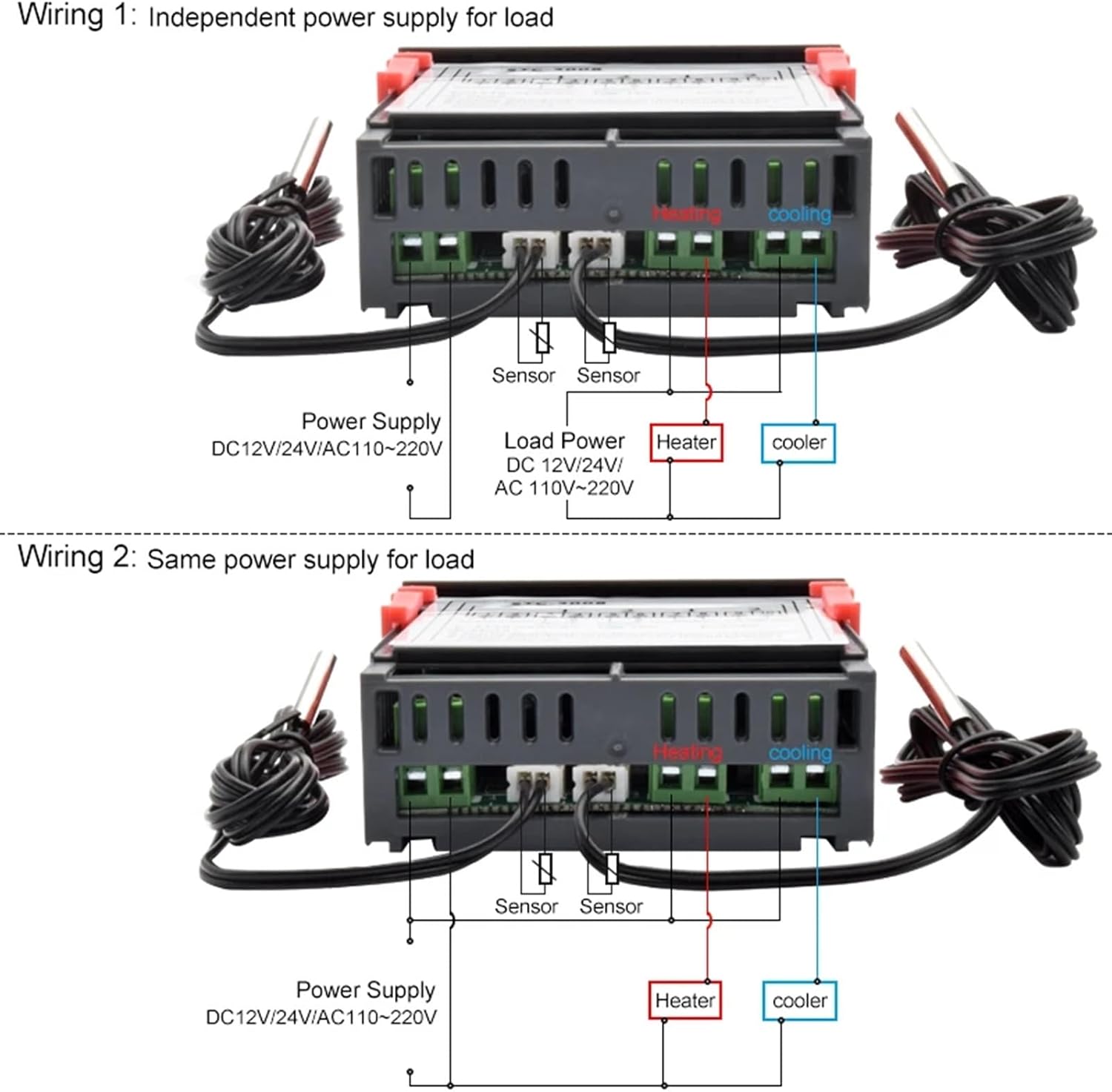

Thermostat ControllersSTC-3008 Dual LED Digital Temperature Controller Incubator Thermostat Heater Cooler Control Switch Two Relay Output Thermoregulator DC12V DC24V AC110-220V Heating Cooling Thermoregulator for Water Heater/ Fan / Cold Storage / Freezer Features: 1. Automatic conversion of refrigeration and heating mode2. Control mode of difference;Temperature display resolution 0.13. The temperature controller has the characteristic of high accuracy, high sensitivity, high stability.4. Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid5. Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etcParameters:Item No.: STC-3008Display: Modes: Heating and CoolingTemperature Measuring Range: -55 ~ 120Accuracy: ±1 Resolution: 0.1Working Temperature: 0 ~ 50Power Supply: AC 110V~220V / DC12V/ DC24VOutput Relay: 2 Relays: Cooling & Heating both 10A220VACSensor error delay 1 minute<;3wNTC Probe Sensor: 100cmDelay start and temperature calibration Function: YESMounting Hole Size: 71x29mmDimension: 75x34.5x85.5mm (LxWxD)Menu InstructionCodeFunctionSet RangeDefaultP0: Delay start0-60 minutes0 P1: Delay start0-60 minutes0 P2High temperature alarmP3~120°C120°CP3Low temperature alarmP2~-55°C-55°CPacking List:1x Temperature Controller + 2x NTC Probe Sensor + 1x ManualPanel IllustrationNo.1 and No.2 all the temperature settingWork Signal Measured Temperature Start Temperature Set Stop Temperature SetKey operation instruction1 .The way to check parameter:Under normal working status, press "up" key it displays temperature setting value; press "down" key it displays the difference value.2. The way to set parameter:Press UP and UP button for 3 seconds at the same time to enter the setting mode, display P0, the first group temperature delay, pressUP andDOWN to adjust, 0~60 minutes, default 0, after adjustment, pressUP since P1, the second group temperature Delay,pressUP andDOWN to adjust, 0~60 minutes, default 0. After adjustment, pressUP since P2, high temperature alarm function, default 120 ,pressUP andDOWN to adjust. Press UP to enter P3, low temperature Alarm, default -55, pressUP andDOWN to adjust, wait for the second to automatically exit. PressDOWN and DOWN 3 seconds to reset to settings.3. Restore system dataPress the "Down" and "Down" button at the same time for 3 seconds , the setting is restoredOperation instructionLong press UPbutton for 3 seconds, display flashes, press UP or DOWN button to set the start temperature(25°C default)Long press DOWNbutton for 3 second, the display flashes, press UP or DOWN button to set the stop temperature (40°C default)Long press UPbutton for 3 seconds, display flashes, press UP or DOWN button to set the start temperature(25°C default)Long press DOWNbutton for 3 second, the display flashes, press UP or DOWN button to set the stop temperature (40°C default)<;Stop temperatureCooling Mode--Start temperature>Stop temperatureSafety Regulations Danger: 1. Strictly distinguish the sensor down-lead, power wire and output relay interface from one another, and prohibit wrong connections or overloading the relay.2. Dangers: Prohibit connecting the wire terminals without electricity cut-off.Warning: Prohibit using the machine under the environment of over damp, high temp., strong electromagnetism interference orstrong corrosion.Notice: 1.The power supply should conform to the voltage value indicated in the instruction.2.To avoid the interference, the sensor down-lead and power wire should be kept a distance.Wiring WaysIndependent power supply for loadSame power supply for load
