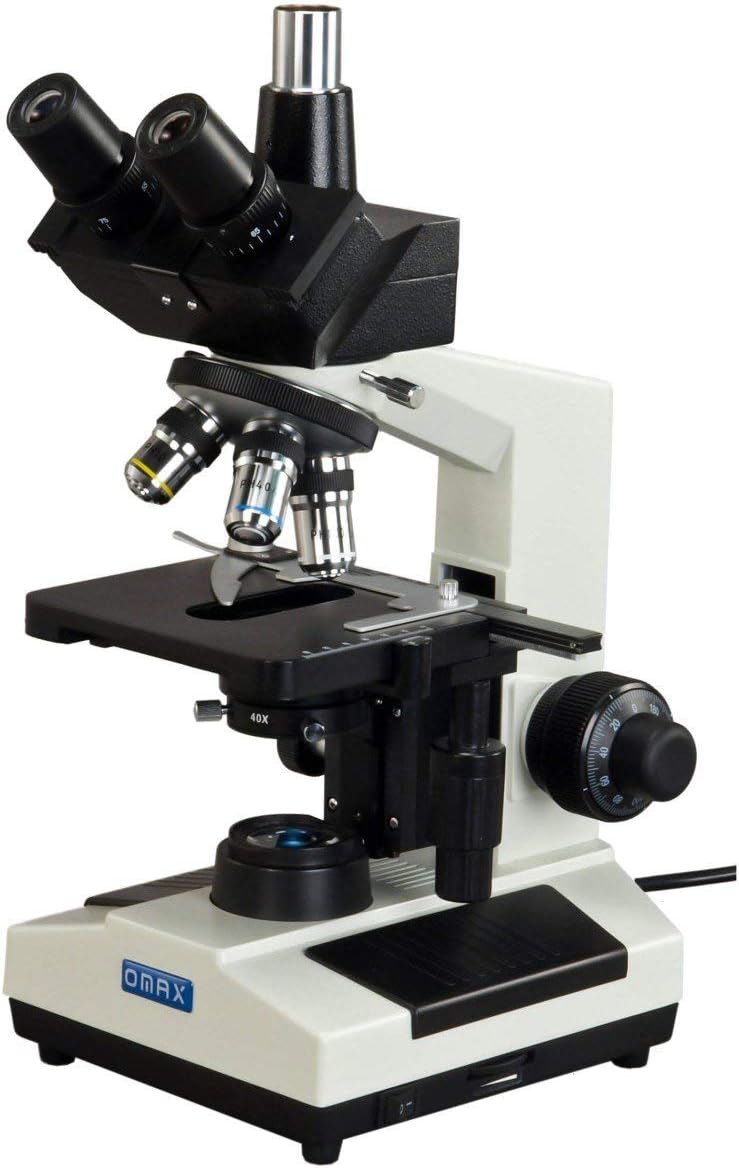

OMAX 40X-2500X Phase Contrast LED Trinocular Compound Microscope

The trinocular compound microscope provides phase contrast microscope system & brightfield microscope system. The biological microscope cmoes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. The compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope.This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.

• Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
• Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
• Total magnification for brightfield: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
• Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control
• Focusing knob can be locked for observation and transportation; Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast kit: - NA1.25 condenser - Three separated condenser annular plates: 10X, 40X, 100X - Three phase contrast objectives: 10X, 40X, 100X - Each phase contrast condenser can be centered individually
• 37mm mounting size in diameter - Centering telescope: 23.2mm; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
• 5-year warranty against manufacturing defects
