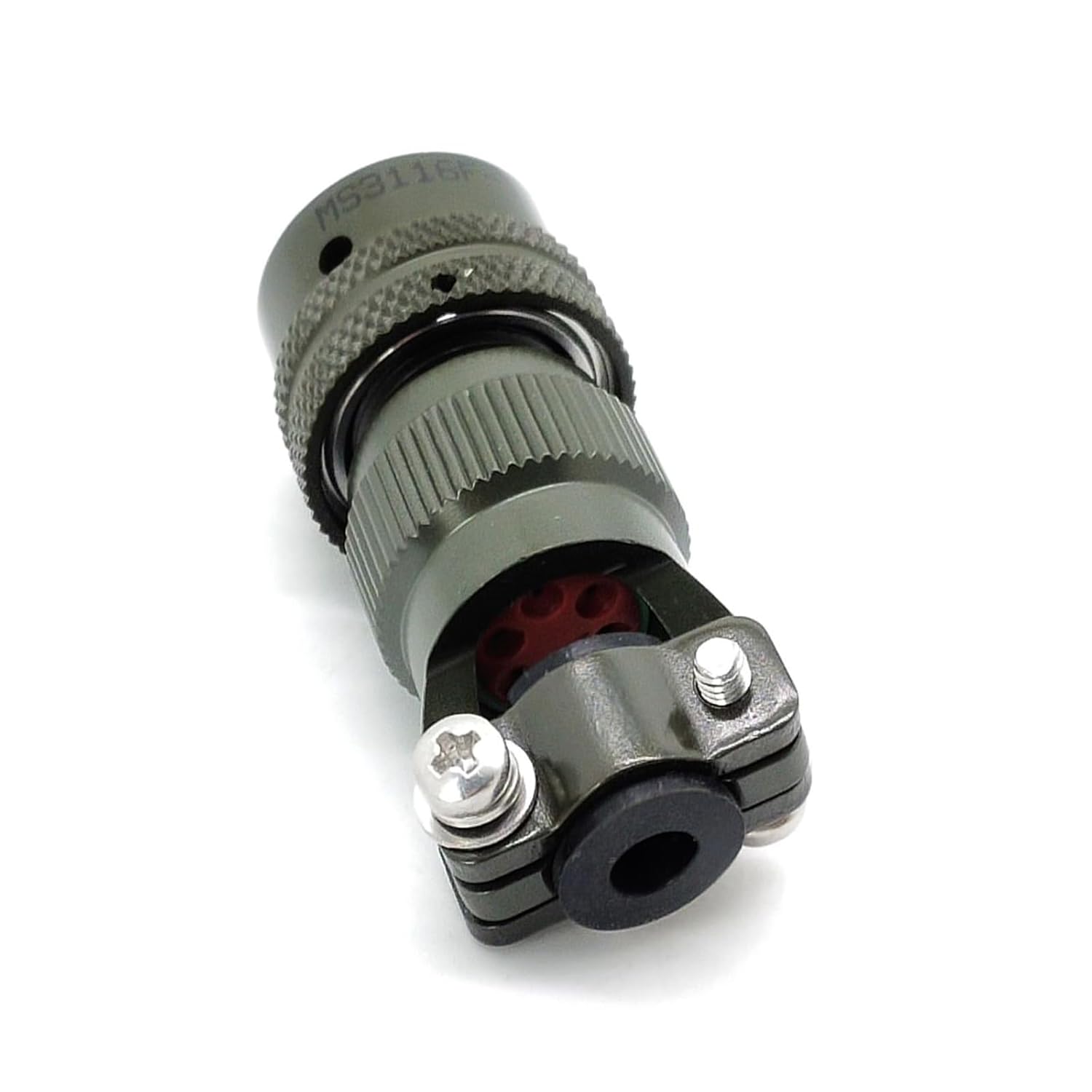

Military Spec Connectors MS3116F10-6P Male Plug 6Pin Straight Solder，MIL-DTL-26482 Bayonet Series Connector (Plug)
Product details
| Management number | 210873648 | Release Date | 2026/04/04 | List Price | $18.05 | Model Number | 210873648 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Electrical Characteristics Mfr Part # MS3116F10-6P Connector Type： Plug Orientation： Straight Contact Type： Male Pin Shell Size： 10 Total Number of Positions： 6 Fastening Type： Bayonet Mounting Type： Cable Mount Contact Termination： Solder Cup Contact Material： Copper Alloy Contact Finish： Gold Color： Olive Green Shielding： Unshielded Rated Current： 7.5A Rated Voltage： 600V Operating Temperature： -55°C ~ 125°C
- MS3116F10-6P Connector,Straight Plug,6Pin,Male,Size 10,Crimp Type,Bayonet Connection Type,Copper Alloy,Olive Green ;
- Environmental sealing with grommet and clamp design
- Resilient inserts available for high dielectric strength and moisture resistance
- High water, corrosion, impact, and heat resistance
- Widely used in aerospace applications, MIL-DTL-26482 Standard Series II bayonet connector is miniature, circular with quick disconnect bayonet coupling. It is also known as DEUTSCH AFD Series Connector, is widely used on applications requiring a general-purpose, miniature cylindrical bayonet connector.
| Brand Name | GXMRHWY |
|---|---|
| Manufacturer | GXMRHWY |
| Included Components | 1*MS311 Connector |
