DIN Rail Mount Screw Terminal Block Breakout Module Board for Arduino MKR.
Product details
| Management number | 211033342 | Release Date | 2026/04/04 | List Price | $12.40 | Model Number | 211033342 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

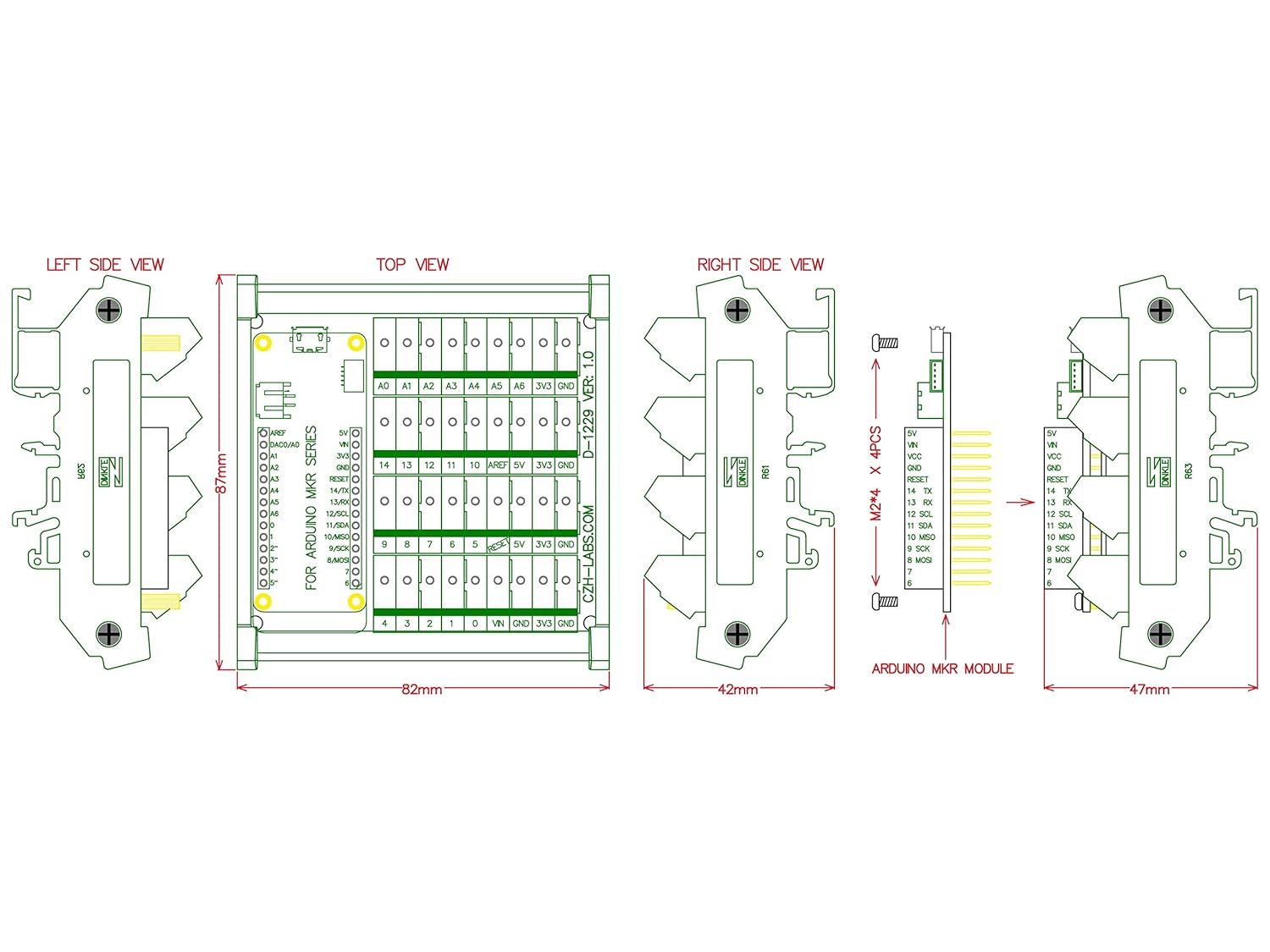

DIN Rail Mount Screw Terminal Block Breakout Board for Arduino MKR. With the breakout board, you can easily extend Arduino MKR projects to industrial control applications. PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers. Note: the item not include Arduino MKR board.
- DIN Rail Mount Screw Terminal Block Breakout Board for Arduino MKR. With the breakout board, you can easily extend Arduino MKR projects to industrial control applications.
- PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
- High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
- FR-4 fiber glass PCB, dual copper layers.
- Note: the item not include Arduino MKR board.
| Color | Green |
|---|---|
| Gauge | 28.0 |
| Model | MD-D1299T-1 |
| Pitch | 5 Millimeters |
| Brand Name | CZH-LABS |
| Part Number | MD-D1299T-1 |
| Manufacturer | CZH-LABS |
| Material Type | Brass |
| Mounting Type | DIN Rail Mount, PCB Mount |
| Connector Type | Screw |
| Current Rating | 12 Amps |
| Number Of Poles | 7 |
| Number Of Contacts | 10 |
| Number of Positions | 7 |
| Item Dimensions W x H | 1.38"W x 0.2"H |
