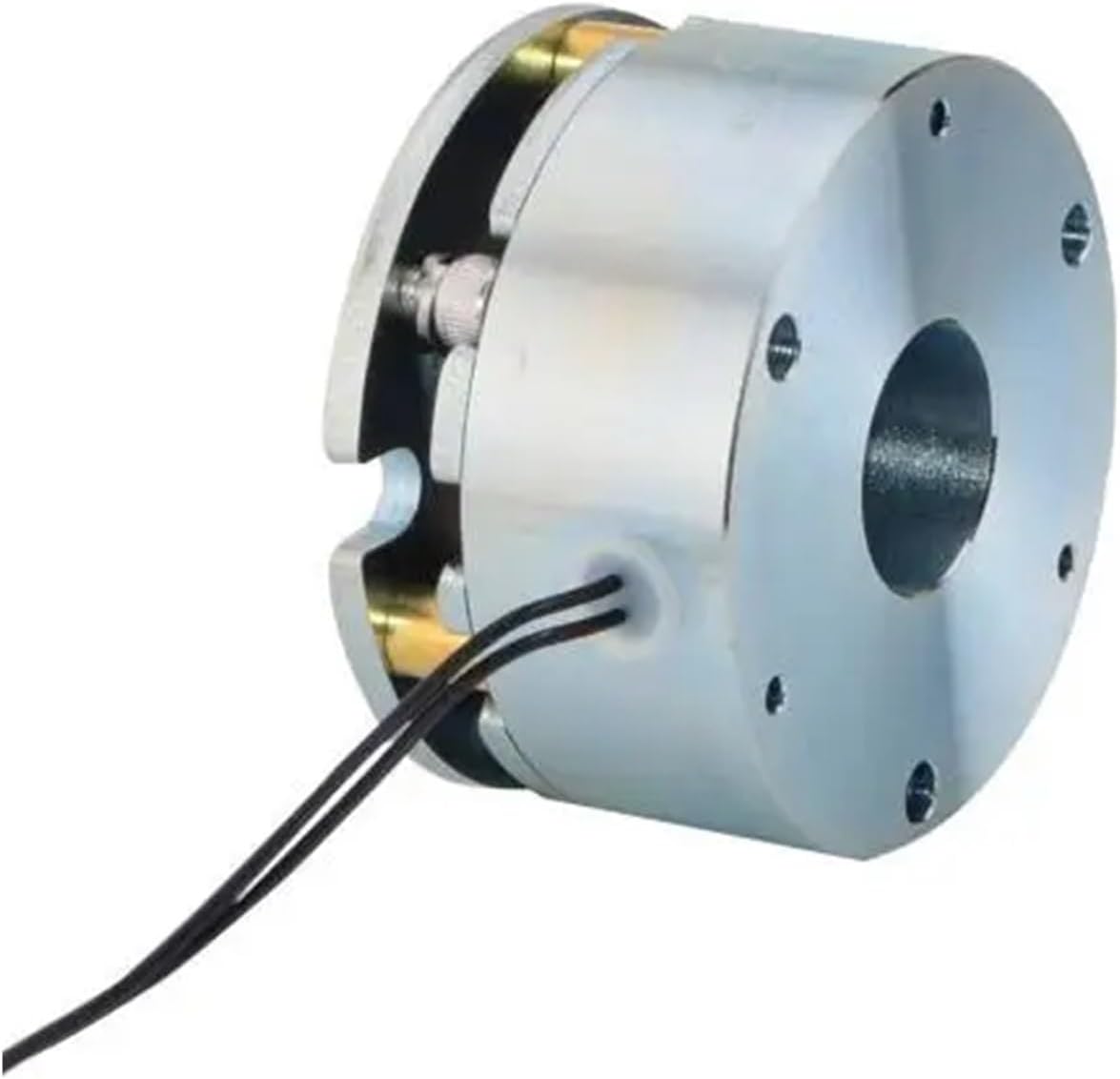

DC electromagnetic brake 24V 2.0Nm (283oz.in), suitable for Nema 23 and 24 stepper motors
Product details
| Management number | 210976913 | Release Date | 2026/04/04 | List Price | $52.64 | Model Number | 210976913 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Industrial MotorsThe brake is a non-excitation brake, powered by 24VDC, and can produce a maximum static friction torque of 2Nm (283.2oz.in). It is ideal for Nema 23 and Nema 24 size stepper motors.Its working principle is:When energized, the armature is pulled by the electromagnetic force in the magnet assembly, thus overcoming the spring action. This allows the friction disc to rotate freely. When the power supply is interrupted, the electromagnetic force disappears and the pressure spring mechanically forces the armature plate to sandwich the friction disk between itself and the pressure plate. This creates torque to hold the load.Brake specificationsBrake type: non-excitedStatic friction torque: 2Nm (283.2oz.in)Moment of inertia: 3.8x10-6kg.cm2Voltage: 24VPower: 11.5WHeat resistance grade: FMaximum speed: 5000rpmWeight: 0.4kg==========Model: SWB-03Certification: ce, ROHSOrigin: Mainland China
- Industrial Motors
- DC electromagnetic brake 24V 2.0Nm (283oz.in), suitable for Nema 23 and 24 stepper motors
| Model | QTSEGSEE |
|---|---|
| Brand Name | QTSEGSEE |
| Model Name | QTSEGSEE |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Manufacturer | QTSEGSEE |
