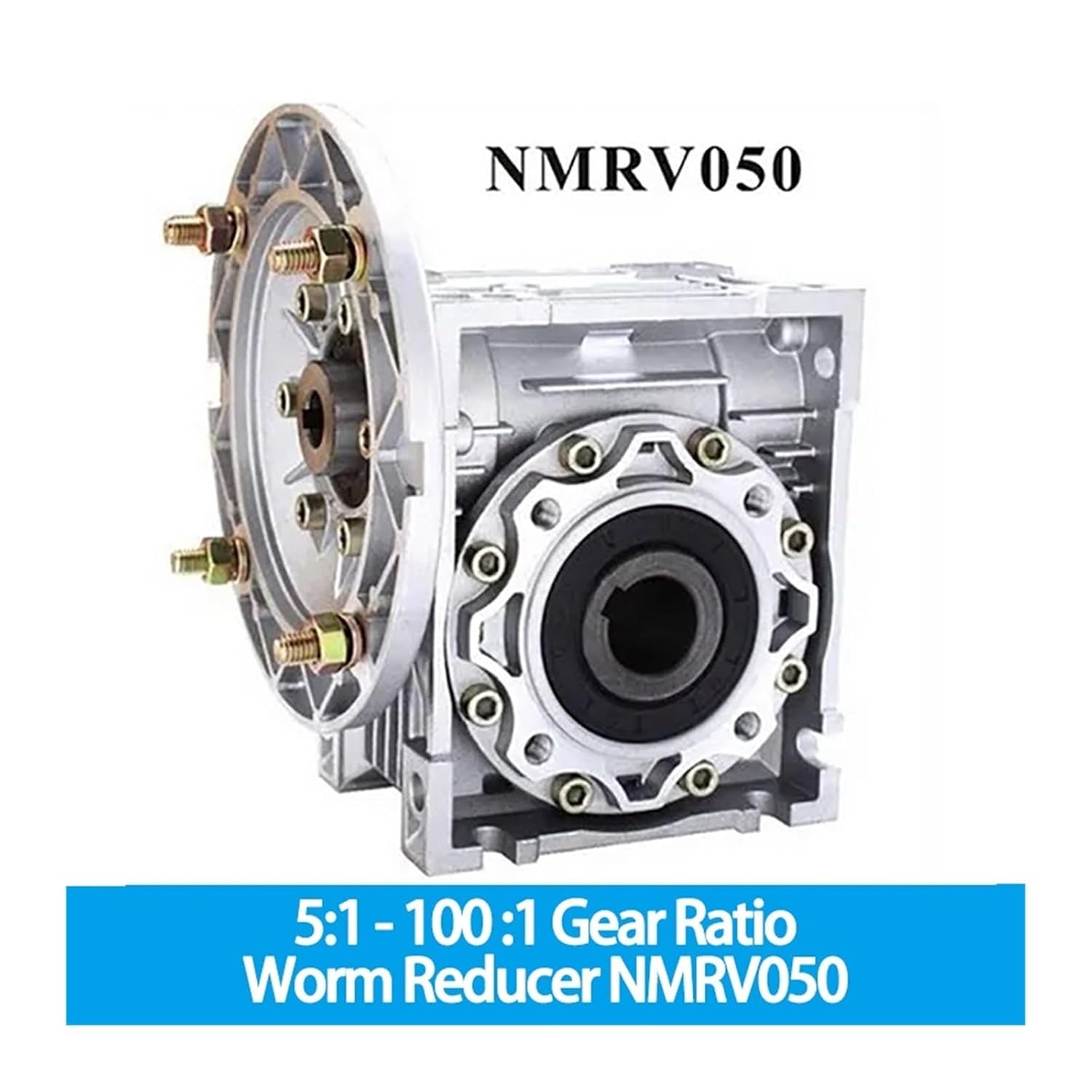

5:1-100 :1 Gear Ratio Worm Reducer NMRV050 11mm 14mm 19mm Input Hole for 0.12KW-0.75KW Motor(RATIO50 to 1_IEC Flange 71B14)

5:1 - 100 :1 Gear Ratio Worm Reducer NMRV050 11mm 14mm 19mm Input Hole For 0.12KW-0.75KW MotorNote:With a ratio of7.5: 1, 10: 1, 15: 1, 20: 1, 25: 1, 30:1,40: 1, 50: 1, 60: 1, 80: 1 100:1 for customers, please leave a message about the ratio transmission, input shaft (11or 14 or 19 mm?) and Flanged Type when placing an order.Flanged Type:80B5 80B14 71B5 71B14 63B5for customers.Color: silver and blue (Sometimes only one color is available)This is a worm gearbox connection without an output shaft, if necessary, please contact us or order this link.We also have NMRV 25/30/40/63/75/90 Models, if need, contact us please.Color:silver and blue (sometimes just one color)Material for worm reducer:housing:aluminum alloy die castWorm gear:Nodular cast iron and bronzeFeature ofworm reducer gearbox:1) High quality aluminum alloy die cast gearbox2) High accuracy worm gear and worm shaft3) Less noise and lower temperature increase4) Easy mounting anc connection, high efficiencyThe structure of the NMRV050worm reducer:The mounting dimension of worm reducer NMRV050(center: 50):Package contains:1pcs NMRV50 reducerWe also have worm reducerparts such asoutput shft, torque arm and output flange,If you need to click on the following link to buy:Nmrv050 single output shaftNmrv050 dual output shaftinputflange,If you need to click on the following link to buy:torque arm,If you need to click on the following link to buy:output flange,If you need to click on the following link to buy:The production line and stock view:Worm Reducer NMRV050 * 1Torque : 21N.m-89N.mModel Number : NMRV050 / RV050Protect Feature : Drip-proofEfficiency : IE 1Output Power : 0.12 KW- 0.75K Wspeed ratio : 5,7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 :1 for customers.Output hole diameter : 25mminput hole diameter : 11mm or 14mm or 19mmInput
